交联聚乙烯绝缘电力电缆（GB/T12706-2008）
XLPE Insulated Electric Cable(GB/T12706-2008)
1.用途Application
电缆用于额定电压0.6/1, 1.8/3, 3.6/6, 6/10, 8.7/10, 8.7/15,12/20, 21/35, 26/35kV输配电系统。
The cable is used in electric transmission and distribution system operating at rated
voltage of 0.6/1,1.8/3, 3.6/6, 6/10, 8.7/10, 8.7/15, 12/20, 21/35, 26/35kV.

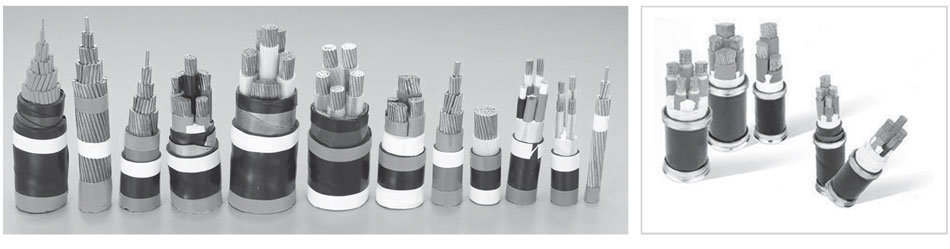

电力电缆的基本结构

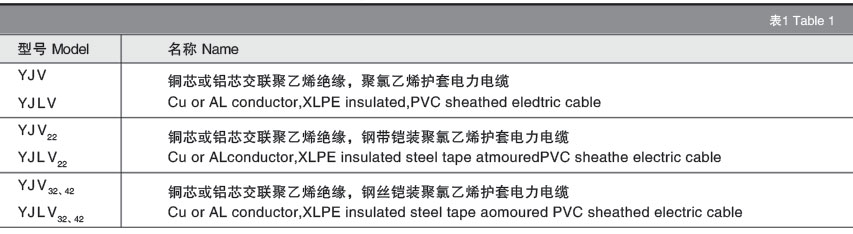

2 电力电缆型号及名称（见表1）Model and name (see table l)

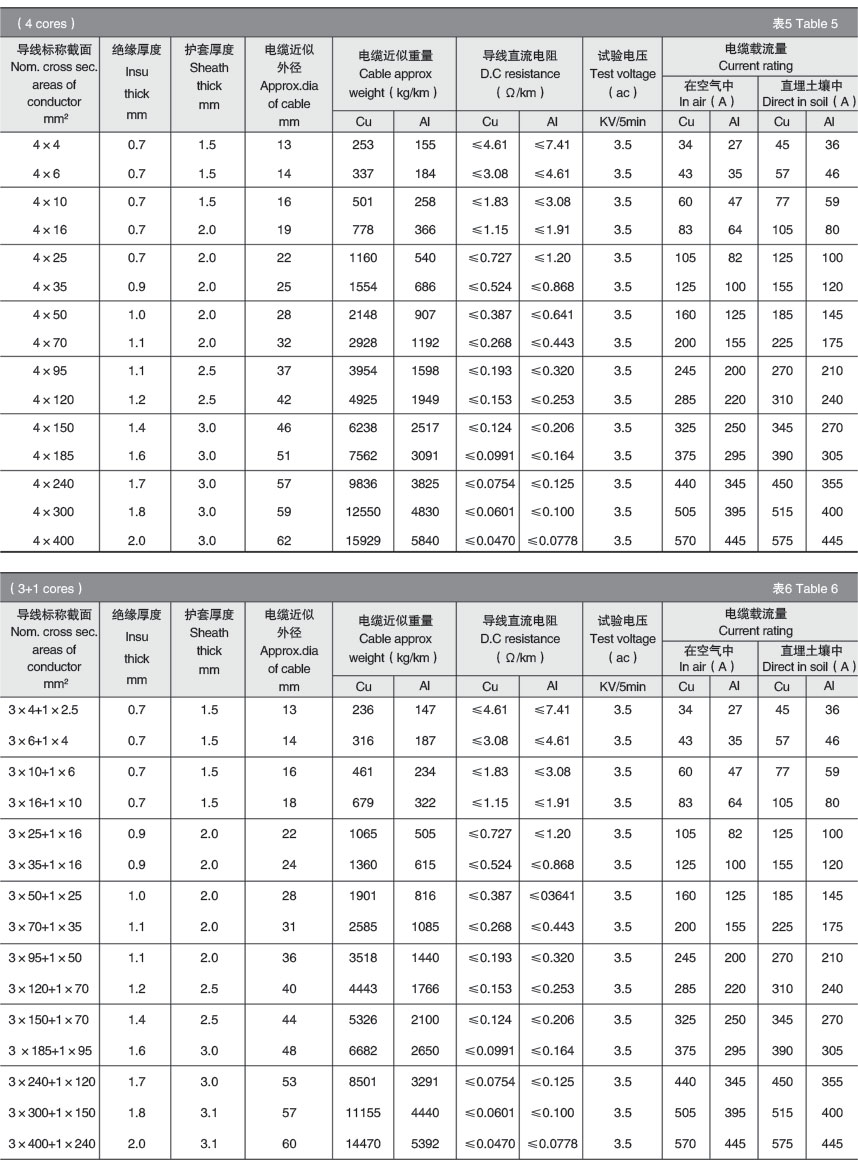

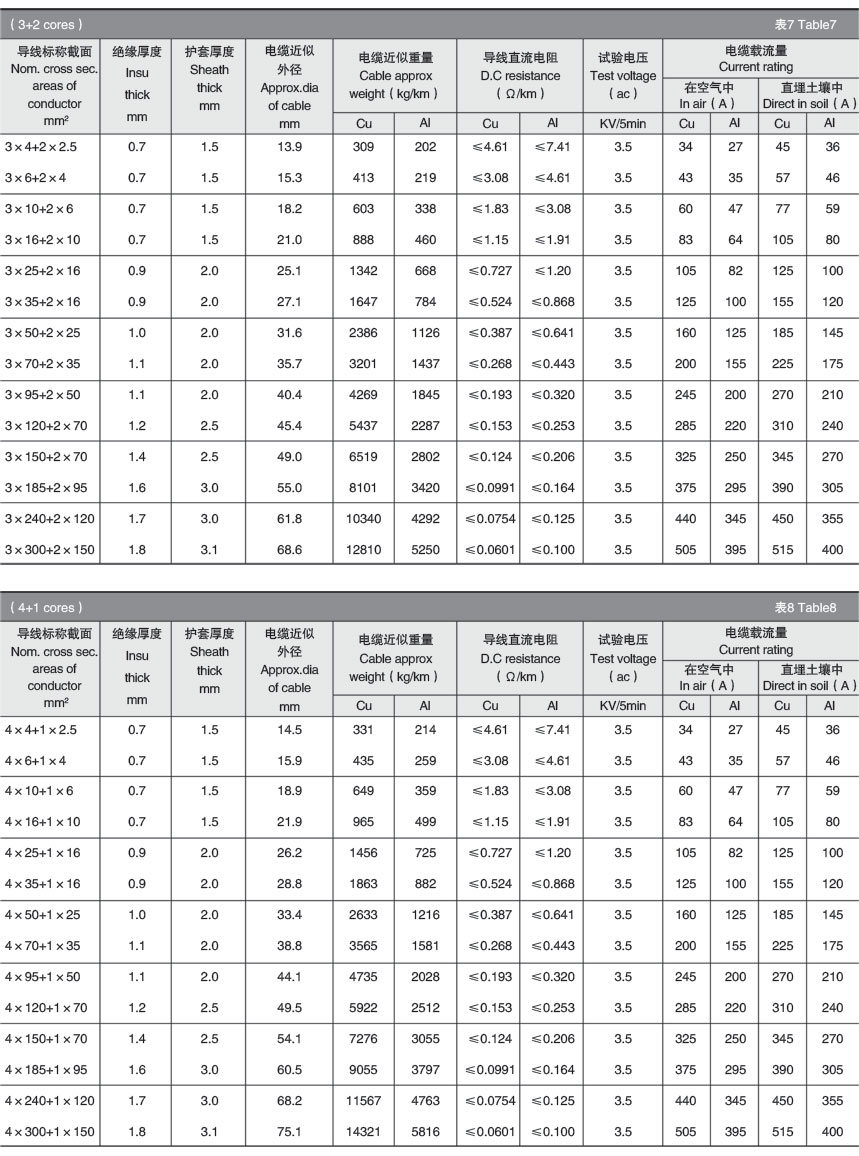

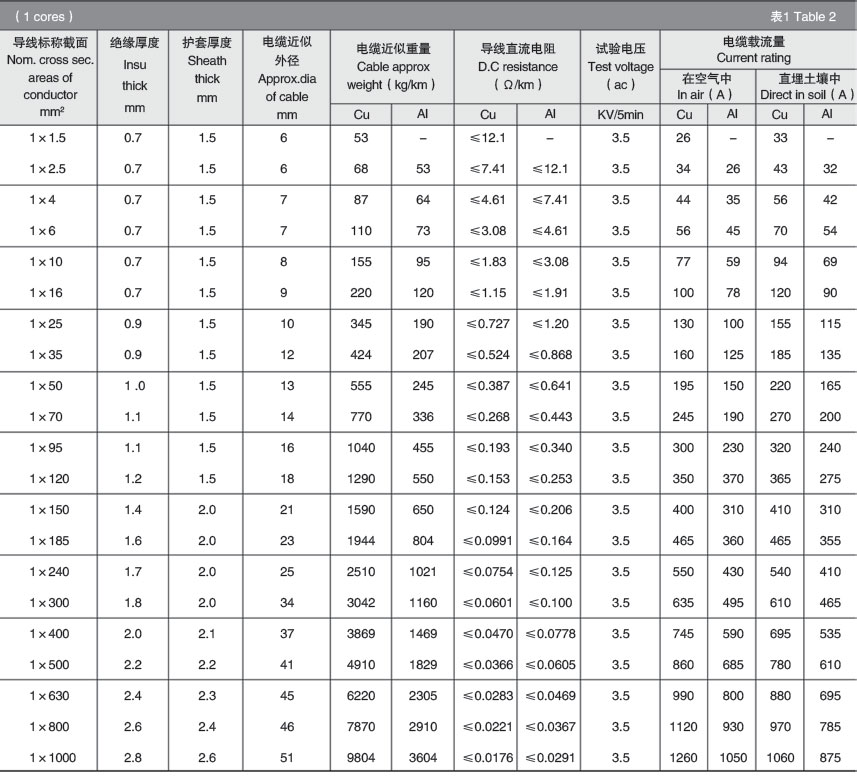

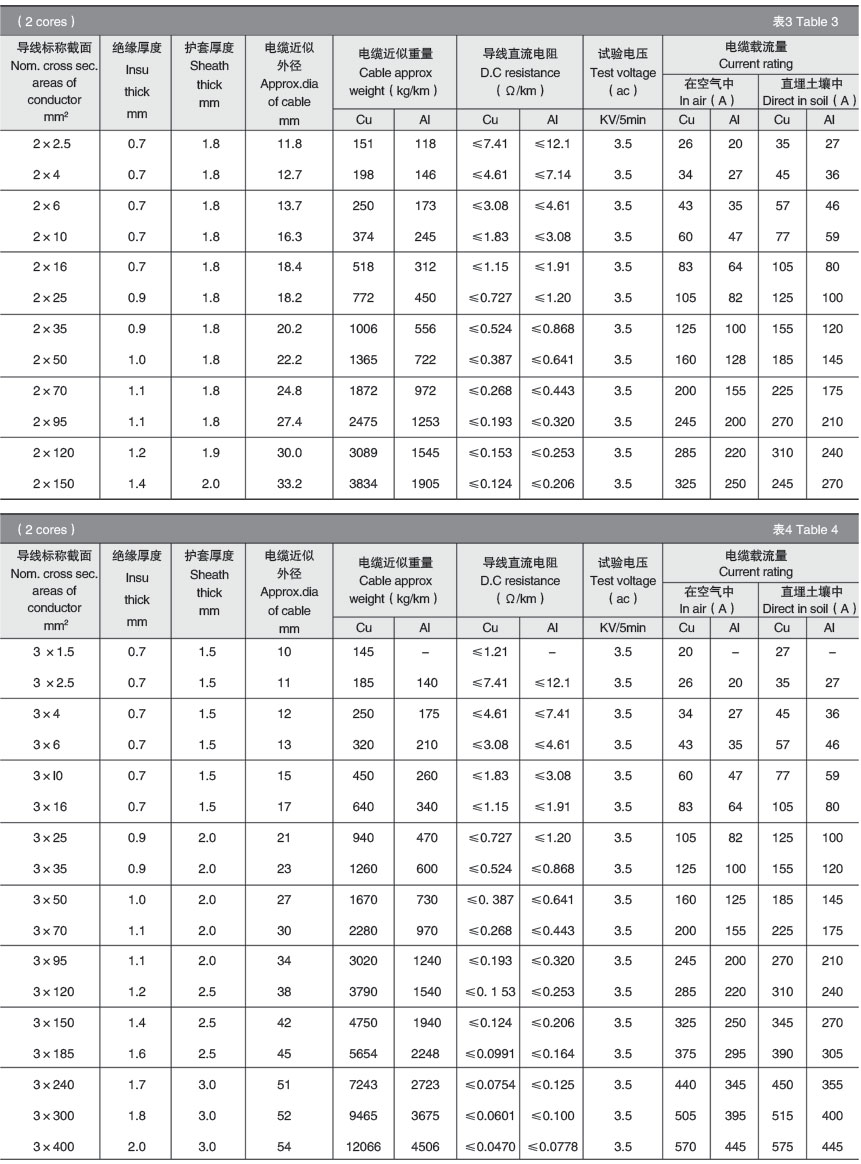

3 结构尺寸、技术参数（见表2-29）Structure size，technology data (see table 2-29)
YJV、YJLV-0.6/1 kV交联电力电缆
电力电缆规格型号表大全
