RV电线的标准截面积有0.30丨0.50丨0.75丨1.0丨1.5丨2.5丨4.0丨6.0丨10.0丨16.0丨25.0丨35.0丨50.0丨70.0mm2
█ 说明：

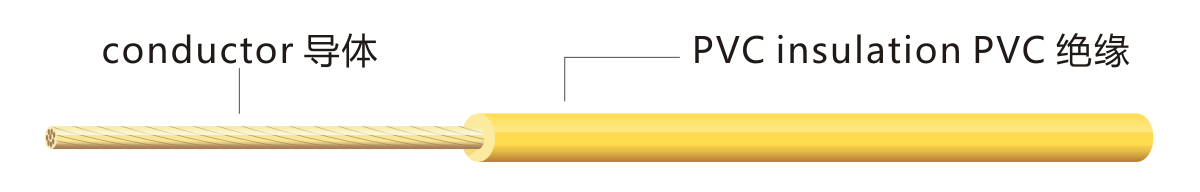

▶ 导体使用单条或绞线0.5-2.5㎡裸铜或镀锡铜
▶ 绝缘材料：P.V.C.
▶ 额定温度：90℃，额定电压：300/500Volts
▶ 通过CCC国家标准测试
▶ 使用标准厚度，易剥，裁断容易
▶ 具抗酸碱，耐油性，防湿防霉等特性
█ Product Description：
▶ Tinned,annealed,strnaded or solid copper conductor,0.5-2.5㎡
▶ Insulation material:P.V.C.
▶ Rated temperature:90℃,Rated voltage:300/500Volts
▶ Passes CCC test
▶ Uniform thickness of wire to ensure easy stripping and cutting
▶ Resistant to acids,oils,alkslies,moisture and fungus
|
UL STYLE & CSATYPE |
Nominal Section 标称截面 |
Conductor 导体规格 |
Insultation Thickness 绝缘厚度 |
Insultation Diameter 绝缘外径 |
Single Biggest 单根最大 |
Resistance 导体电阻 | ||
|
线数/线径 | 不镀金属 | 镀金属 | ||||||
|
mm² |
No./mm |
平均值 | 最小值 |
mm |
Ф |
Ω㏎ | Ω㏎ | |
|
RV电线 227IEC 08(RV-90) |
0.5 |
16/0.2 |
0.6 | 0.44 |
2.20±0.05 |
0.21 |
39 | 40.1 |
|
28/0.15 | ||||||||
|
0.75 |
24/0.2 |
0.6 | 0.44 |
2.40±0.05 |
0.21 |
26 | 26.7 | |
|
1.0 |
32/0.2 |
0.6 | 0.44 |
2.60±0.05 |
0.21 |
19.5 | 20 | |
|
1.5 |
48/0.2 |
0.7 | 0.54 |
3.0±0.10 |
0.21 |
13.3 | 13.7 | |
|
2.5 |
49/0.25 |
0.8 | 0.63 |
3.60±0.10 |
0.26 |
7.98 | 8.21 | |
|
RV电线 227IEC 07(BV-90) |
0.5 |
1/0.80 |
0.6 | 0.44 |
2.2±0.05 |
36 | 36.7 | |
|
0.75 |
1/1.0 |
0.6 | 0.44 |
2.4±0.05 |
24.5 | 24.8 | ||
|
1.0 |
1/1.13 |
0.6 | 0.44 |
2.4±0.05 |
18.1 | 18.2 | ||
|
1.5 |
1/1.38 |
0.7 | 0.54 |
2.8±0.10 |
12.1 | 12.2 | ||
| 2.5 | 1/1.78 | 0.8 | 0.62 | 3.5±0.10 | 7.41 | 7.56 | ||
