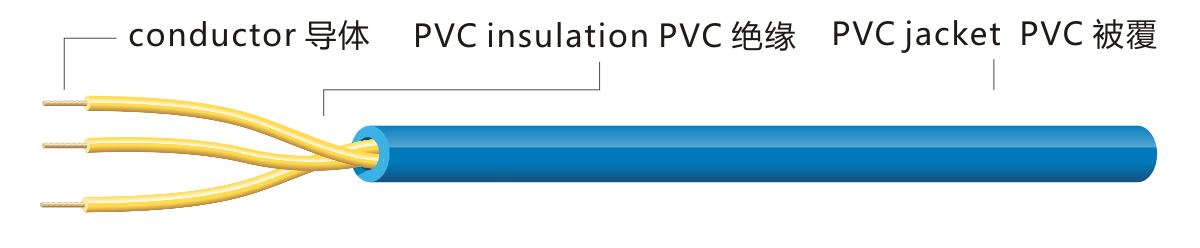

█ 说明： ▶ P.V.C.被覆 ▶ 绝缘材料为：P.V.C. ▶ 额定电压：依指定 ▶ 可通过国家CCC标准测试 |
| █ Product description:
▶ P.V.C. Jacket ▶ Insulation material:P.V.C. ▶ Rated temperature:70℃ ▶ Rated voltage:As specified ▶ Passes CCC test
|
|
UL STYLE & CSATYPE |
Conductor 导体规格 |
Insultation Thickness 绝缘厚度 |
Jacket Thickness 被覆厚度 |
Overall Diameter 完成外径 | |
|
SIZE |
线数/线径 | ||||
|
mm² |
No./mm |
mm |
mm |
mm | |
|
RVV电线 (300/300V) |
0.50×2 |
28/0.15 |
0.5 |
0.6 |
5.30 |
|
0.50×2 |
28/0.15 |
3.26×5.6 | |||
|
0.75×2 |
42/0.15 |
5.70 | |||
|
0.50×2 |
28/0.15 |
5.60 | |||
| 0.75×2 | 42/0.15 | 6.05 | |||
|
RVV电线 (300/500V) |
0.75×2 |
42/0.15 |
0.6 |
0.8 |
6.05 |
|
0.75×2 |
42/0.15 |
0.6 |
0.8 |
4.10×6.5 | |
| 1.0×2 | 32/0.2 |
0.6 | 0.8 | 6.9 | |
| 1.0×2 | 32/0.2 |
0.6 | 0.8 | 4.30×6.9 | |
| 1.5×2 | 30/0.25 |
0.7 | 0.8 | 7.7 | |
| 1.5×2 | 30/0.25 |
0.6 | 0.8 | 4.73×7.8 | |
| 2.0×2 | 64/0.2 |
0.8 | 0.9 | 5.44×9.0 | |
| 2.5×2 | 49/0.25 |
0.8 | 1.0 | 9.5 | |
| 2.5×2 | 49/0.25 |
0.8 | 1.0 | 5.8×9.5 | |
| 0.75×2 | 24/0.2 |
0.6 | 0.8 | 6.9 | |
|
1.0×2 |
32/0.2 |
0.6 |
0.8 |
7.35 | |
|
1.5×2 |
30/0.25 |
0.7 |
0.9 |
8.5 | |
|
2.5×2 |
49/0.25 |
0.8 |
1.1 |
10.34 | |
